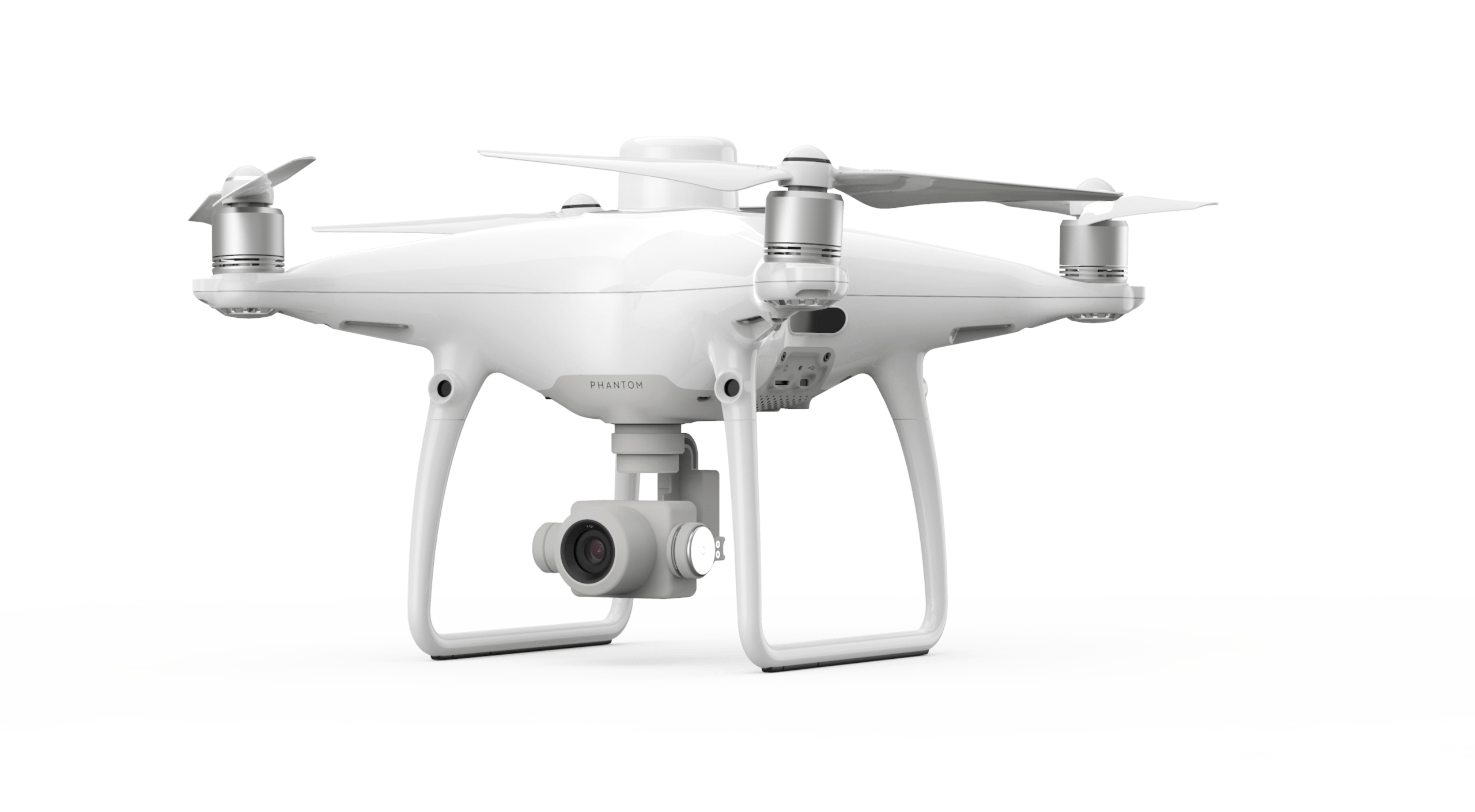

DJI Phantom 4 RTK Combo
Phantom 4 RTK – Experienced Intelligence. Absolute precision.
Experience the next generation of advanced mapping workflow with the Phantom 4 RTK, the most compact and accurate low-altitude mapping solution.
Mapping the next generation
DJI has completely redesigned modern drone technology, creating a new standard of precision.
The Phantom 4 RTK provides customers with centimeter-accurate data and also reduces the required ground control points.
• 1 cm + 1 ppm RTK horizontal positioning accuracy
• 1.5 cm + 1 ppm RTK vertical positioning accuracy
• 5 cm * Absolute horizontal precision photogrammetric models
• RTK modules
• 1 “CMOS sensor
• GS RTK APP
• D-RTK 2 GNSS Mobile Station
Centimeter-accurate positioning system

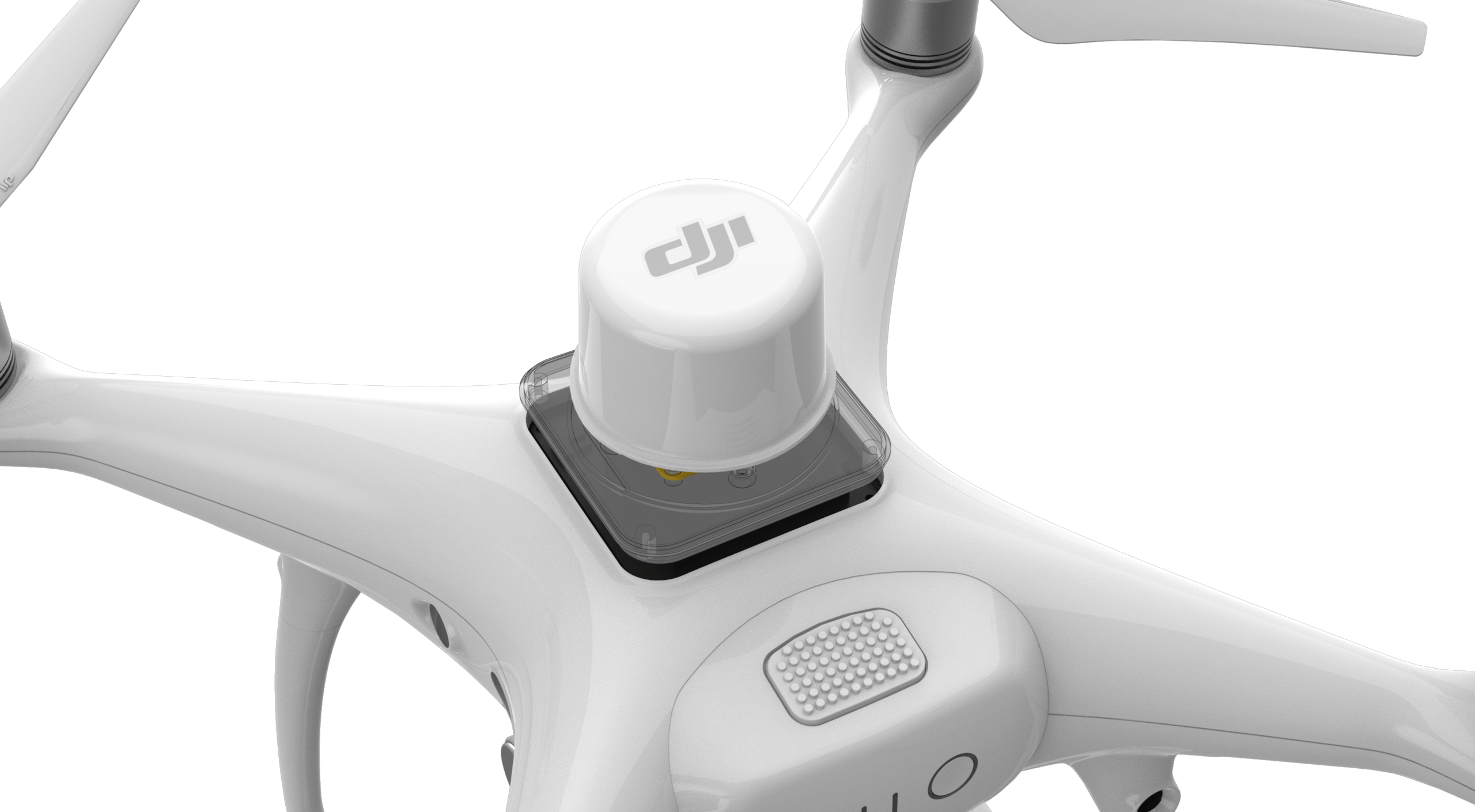

The new RTK module has been integrated directly into the Phantom 4 RTK and provides centimeter-accurate position data for improved overall precision of metadata. Directly under the RTK receiver are redundant GNSS modules installed, which provide more flight stability in areas with traditionally poor reception, such as densely populated inner cities. By combining both modules, the Phantom 4 RTK increases flight safety and simultaneously logs precision data from complex surveys, mapping and inspections. Integrate the Phantom 4 RTK into professional workflows with ease. The Phantom 4 RTK is able to easily connect to the D-RTK 2 Mobile Station, in addition, the connection via NTRIP (Network Transport of RTCM via Internet Protocol) via a 4G dongle or Wi-Fi hotspot possible and storing satellite data for Post Processed Kinematics (PPK).
Accurate data logging with TimeSync
To take full advantage of the Phantom 4 RTK’s positioning modules, the new TimeSync system continuously adjusts the flight controller, camera and RTK module data. In addition, TimeSync ensures that every photo is equipped with accurate metadata and fixes the position data in the center of the CMOS – for optimal results and precision in photogrammetric methods.

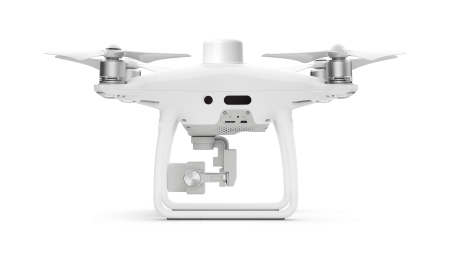

Precise camera system
Capture the best image data thanks to the 1-inch 20-megapixel CMOS sensor. The mechanical closure provides seamless mapping and data acquisition by eliminating rolling shutter effects. Due to the high resolution of the camera sensor, the Phantom 4 RTK is able to achieve a ground sample distance (GSD) of 2.74 cm at an altitude of 100 m. To ensure the accuracy of the Phantom 4 RTK, each lens undergoes a thorough calibration process that measures radial and tangential distortions. The distortion parameters are stored in the metadata of each image so that the post-processing software can be customized for each user.

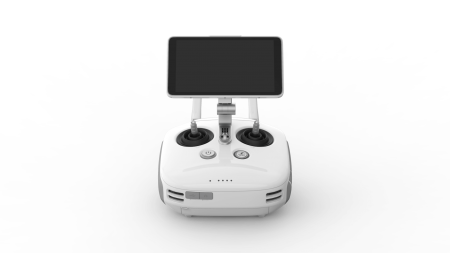

Special app for flight planning
The new GS RTK app allows pilots the intelligent control of the Phantom 4 RTK. The app offers, in addition to the traditional flight modes, two new scheduling modes: photogrammetry and waypoints. The scheduling modes allow automated workflows by allowing pilots to set the drone’s flight path while easily adjusting parameters such as overlap rate, altitude, airspeed, and camera settings. The GS RTK app was developed specifically for the end user and therefore offers several features designed specifically for mapping and inspection. The app is able to load KML files directly, thereby allowing the planning of flight routes already in the office. A new shutter-priority mode keeps the exposure constant for all photos and wind warnings provide information about unfavorable shooting conditions.
Support for the Mobile SDK
The Phantom 4 RTK is compatible with the DJI Mobile SDK, allowing even more possibilities for automation and customization in combination with a mobile device.
OcuSync image transmission system
Enjoy reliable HD picture and video transmission with a range of up to 7 km. * No obstacles and interference, FCC compliant The maximum flight distance is a reference value for signal strength and robustness. Unless otherwise permitted, a drone should always be flown with visual contact.
Seamless compatibility with the D-RTK 2 Mobile Station
Support Phantom 4 RTK deployments with a D-RTK 2 Mobile Station – for differential real-time data transfer. The rugged design of the Mobile Station and OcuSync 2.0 provide precision to the nearest centimeter in the most adverse conditions.
Now invest in modern workflows
With a built-in flight planning application (GS RTK) and an easy way to collect RTK data (RTK network or D-RTK 2 Mobile Station), pilots have a comprehensive survey, mapping and inspection solution at hand.
